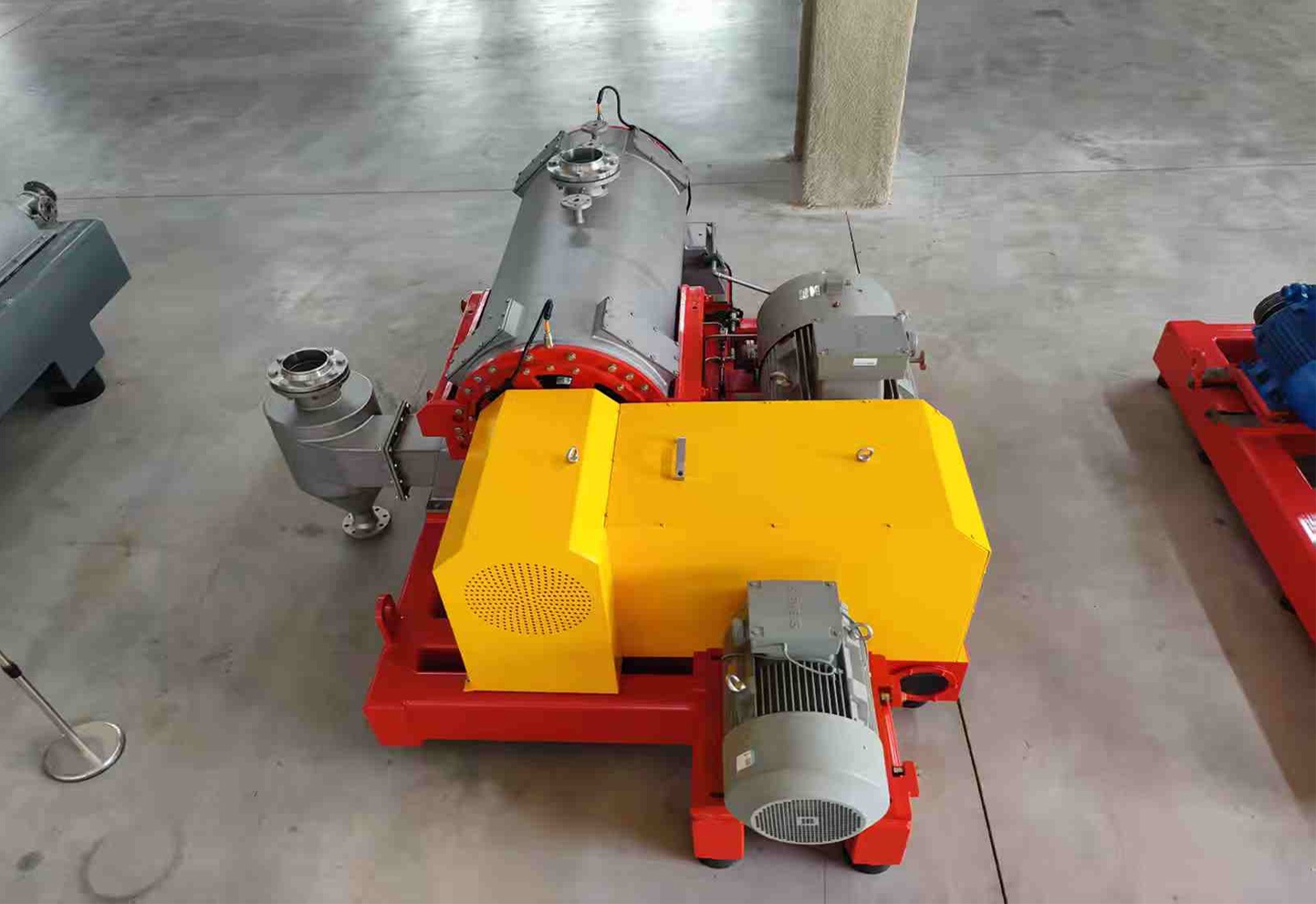

Sedimentation Centrifuge

The sedimentation centrifuge is suitable for clarification and concentration of fine particle, low-concentration, high-viscosity and difficult-to-filter materials. It requires no screen mesh and realizes solid-liquid separation by means of centrifugal sedimentation.

Widely applied in chemical environmental protection, municipal engineering, food, pharmaceutical and other industries, it solves the processing difficulties of fine materials that cannot be handled by filter-type centrifuges. It can replace models imported from some brands in Germany, Japan, and other countries.

Screw Screen Centrifuge

The spiral screen centrifuge is a core solid-liquid separation equipment widely used in chemical industry, salt making, soda ash, sodium bicarbonate, environmental zero-discharge and other fields.

Our self-developed large-scale spiral screen centrifuge can replace imported equipment from German brands such as Siebtechnik and Andritz. It effectively solves the challenges of continuous separation for materials with high capacity demand, high moisture content and strong corrosivity. Widely adopted in continuous and large-scale production lines, it fully meets the requirement of 24-hour non-stop operation.

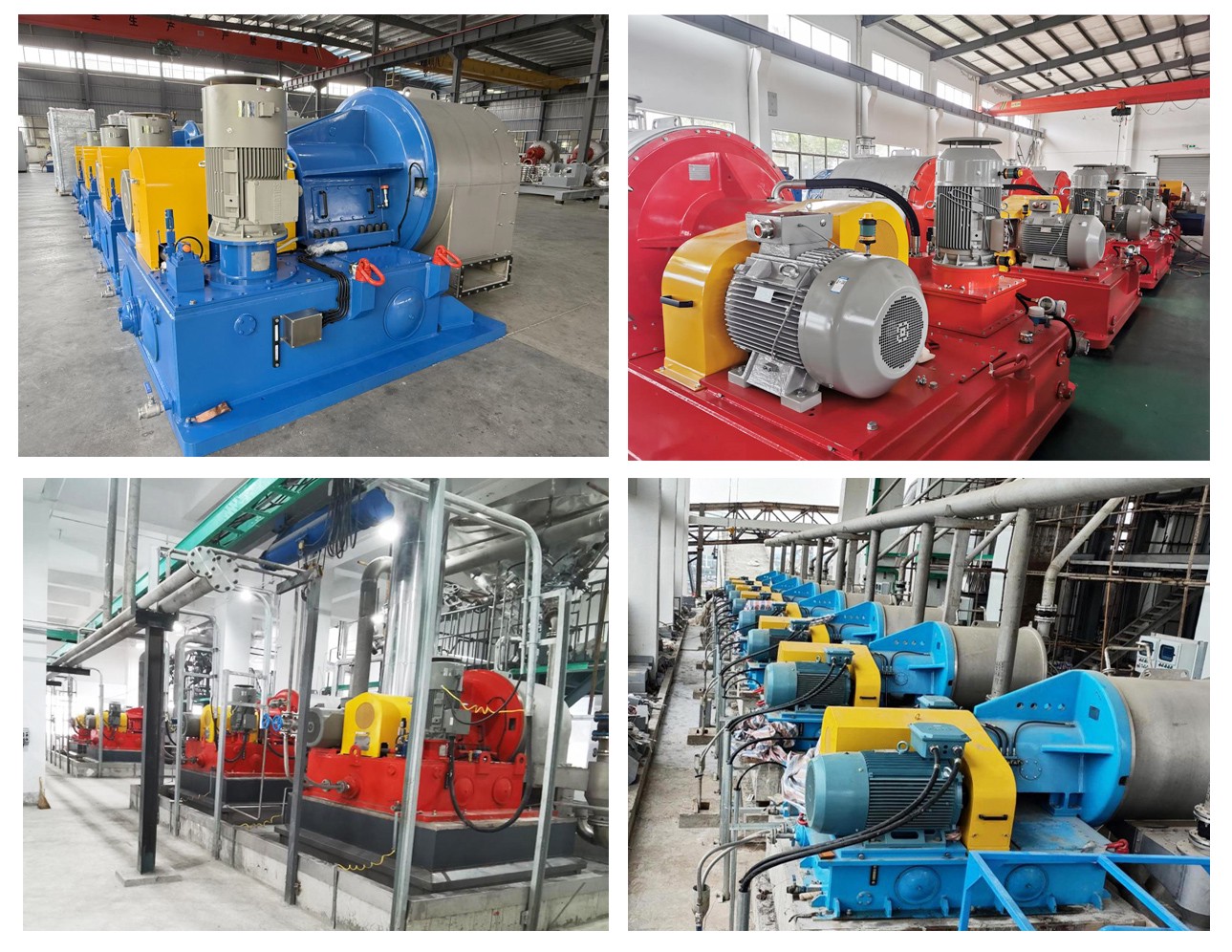

Pusher Centrifuge

Pusher centrifuges are high-efficiency separation equipment for medium-to-large particle size crystalline materials. They are widely used in the salt production, chemical and soda ash industries.

Adopting single-stage bidirectional, two-stage and three-stage pushing structures, the equipment features superior dewatering performance and low crystal fragmentation rate. It is the preferred model for crystalline materials such as sodium chloride and potassium chloride.

Widely applied in large-scale domestic salt chemical and soda ash projects, It can replace models imported from some brands in Germany, and other countries.

Core Product Advantages:

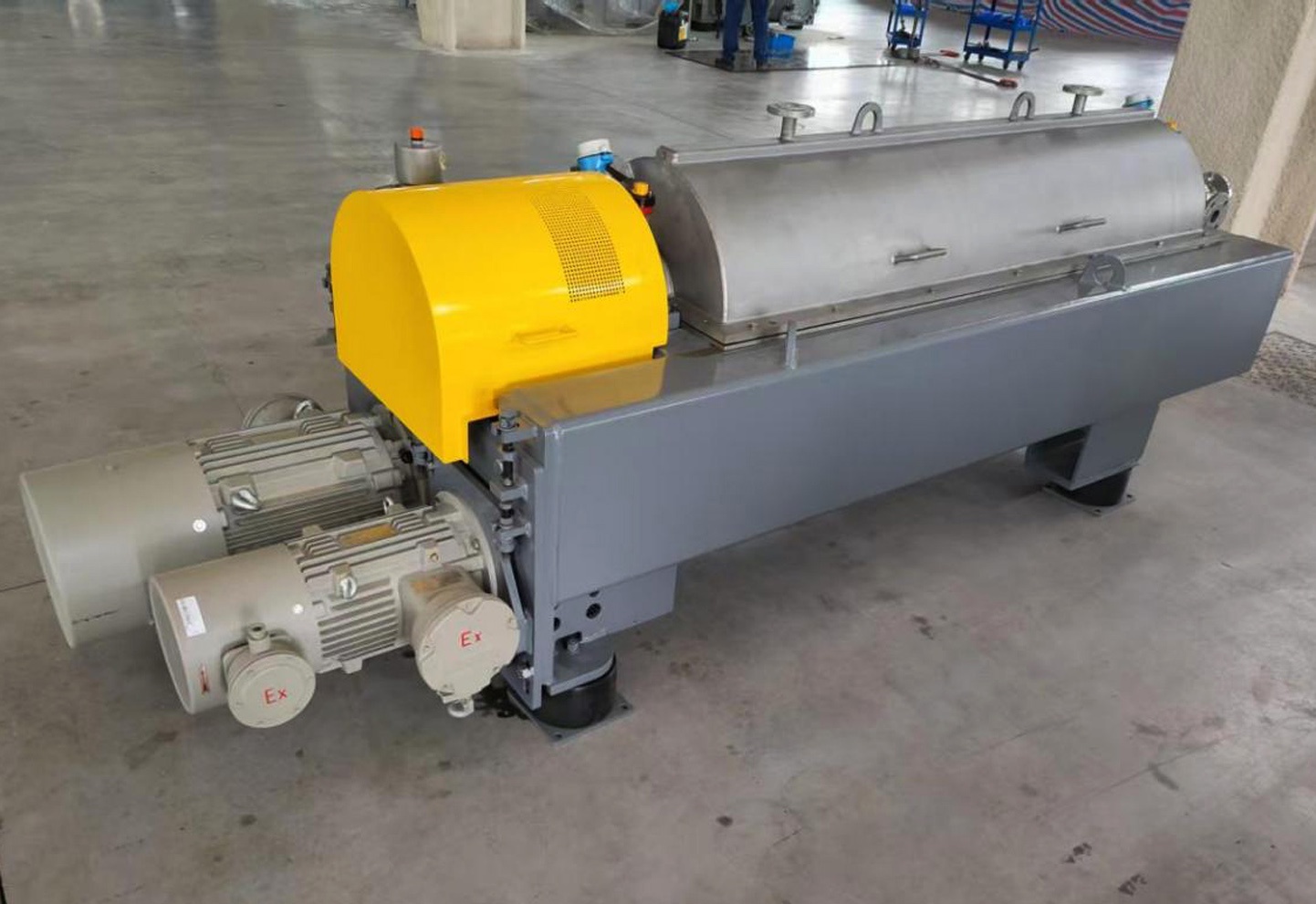

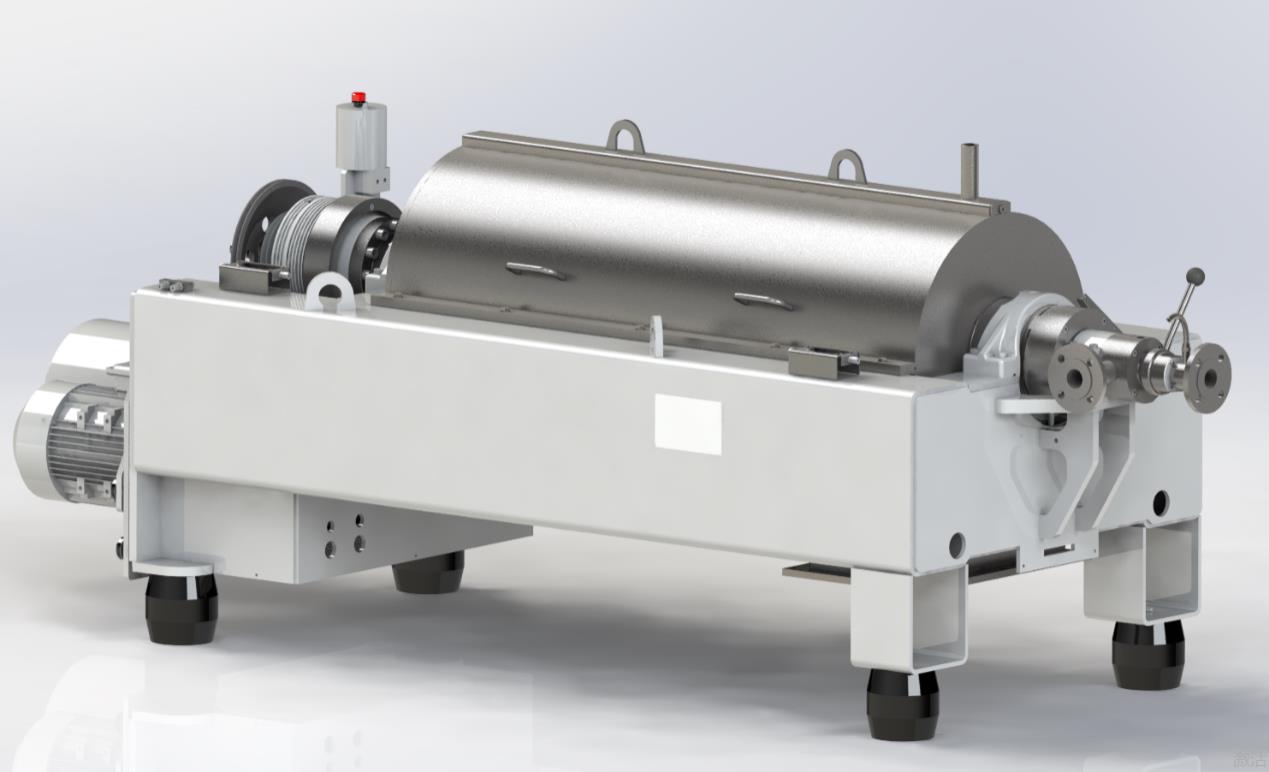

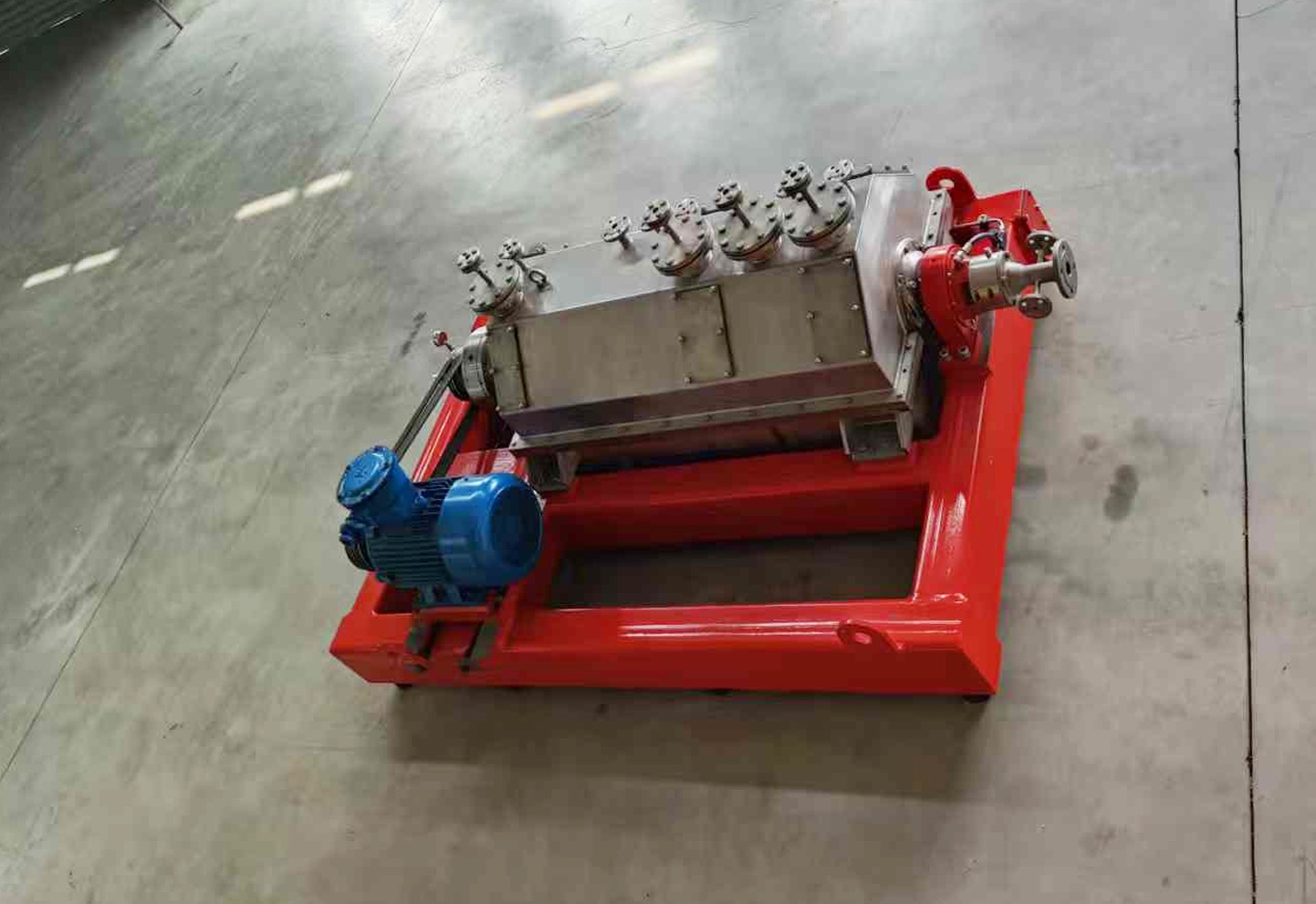

Sedimentation Centrifuge

It consists of bowl, scroll pusher, differential system, main and auxiliary motors, base frame, machine casing, lubrication system, vibration damping device and PLC control system.

Material contact components such as the bowl and scroll can be made of 304, 316L, 2205 duplex stainless steel, titanium, Hastelloy and other materials according to material characteristics. Hard alloy can be surfacing-welded on the scroll blade to enhance wear resistance.

Technical Features：

(1) Screen-free structure with no clogging, suitable for ultra-fine particles.

(2) Adjustable differential speed, adaptable to materials of different concentrations and viscosities.

(3) Fully enclosed operation, zero leakage, environmentally friendly and safe.

(4) Small footprint and high degree of automation.

(5) Capable of three-phase separation (liquid-liquid-solid).

(6) Wear-resistant treatment ensures long service life.

(7) Stable operation with low vibration and low noise.

(8) Support remote monitoring and linkage control.

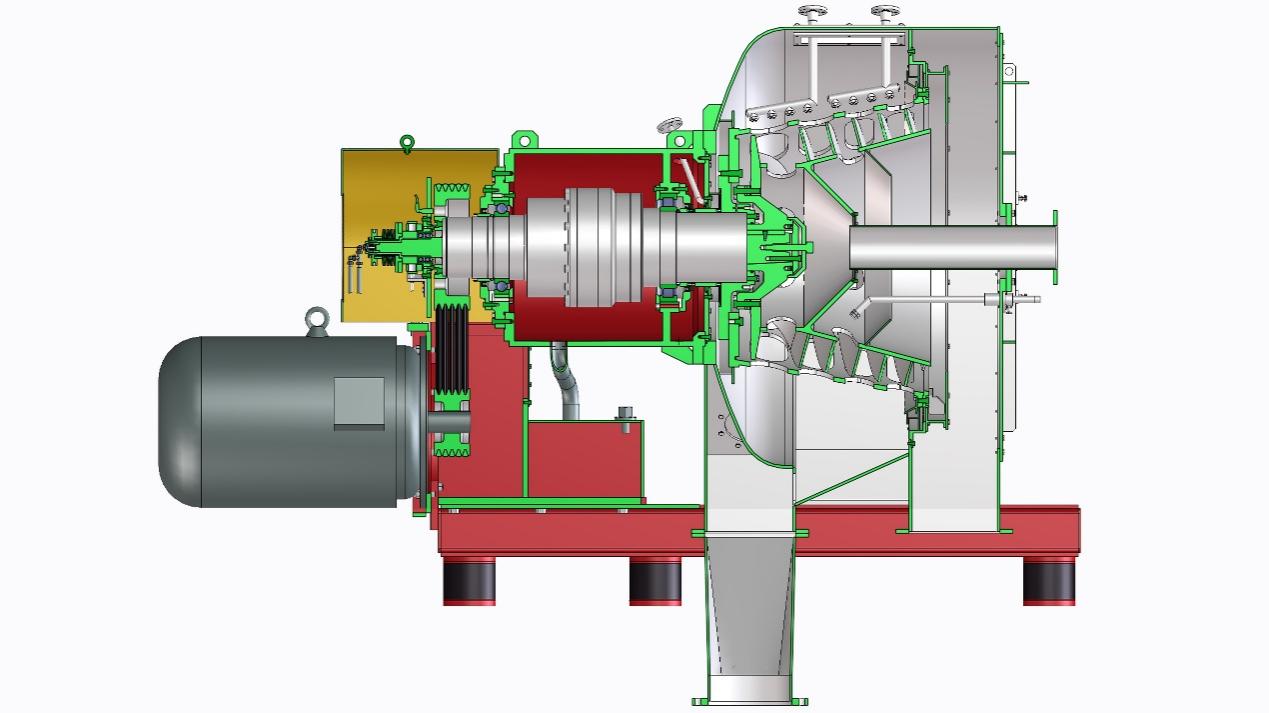

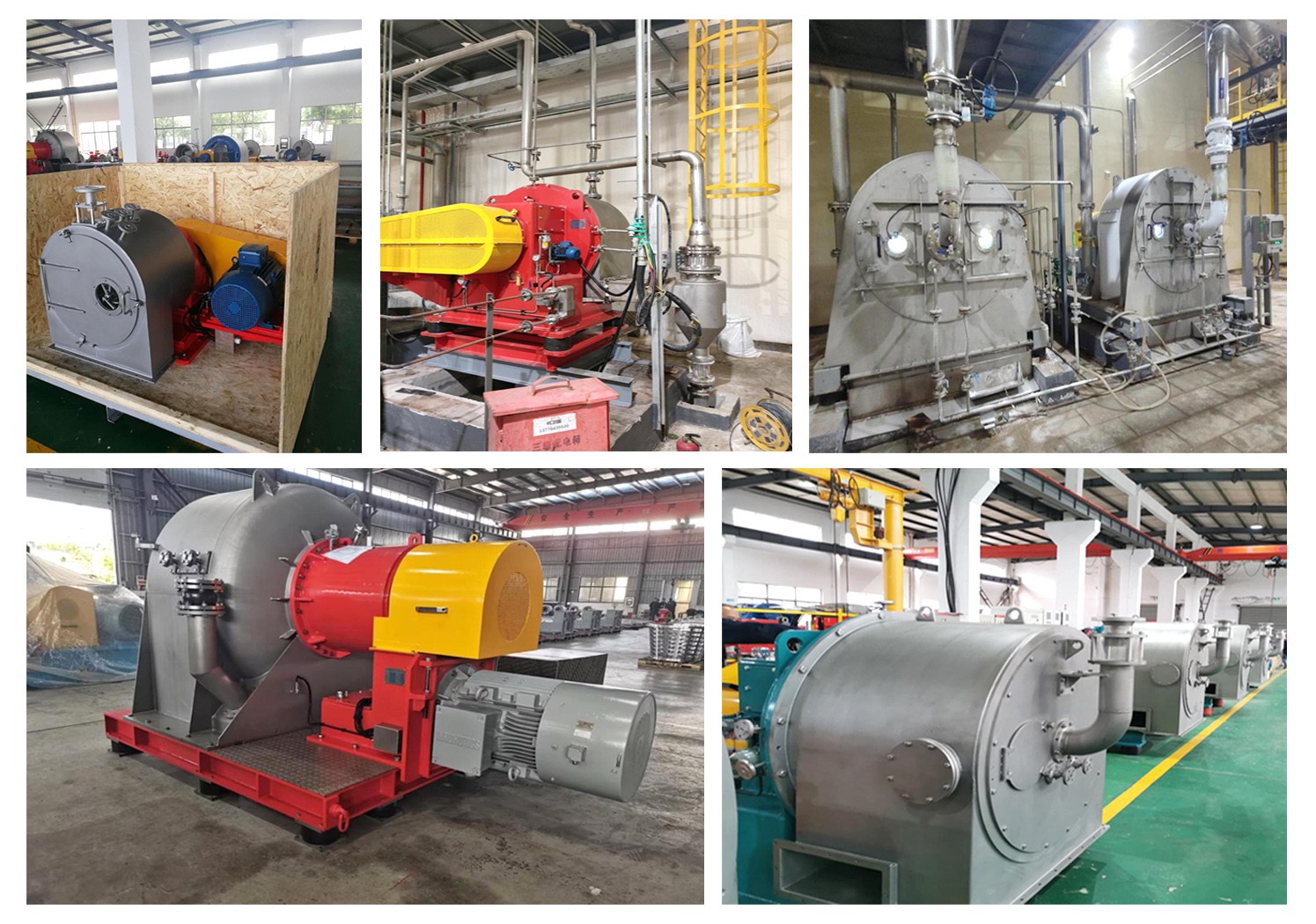

Screw Screen Centrifuge

The complete machine consists of a base vibration damping system, main motor drive, planetary/cycloidal differential, screen cage, scroll scraper, hydraulic lubrication system, cooling system, automatic control and monitoring system, material silo, cleaning system, etc.Materials of material contact components such as the screen basket, scraper and screen mesh can be selected from 304, 316L, 2205 duplex stainless steel, titanium, zirconium, Hastelloy and other materials according to the material composition, featuring wear resistance and corrosion resistance. Core bearings, sensors and hydraulic components are selected from international first-tier brands to ensure long-term stable operation.

Technical Features：

(1) Continuous filtration and automatic discharging, no manual intervention required.

(2) Precise screen mesh gaps, high separation efficiency and low filtrate solid content.

(3) Planetary/cycloidal differential transmission, with large torque, stable operation and low noise.

(4) Equipped with multiple protections including vibration, oil temperature, oil pressure, overload and rotational speed.

(5) Support online cleaning, not easy to clog the screen, and low maintenance load.

(6) The material is acid and alkali resistant, high temperature resistant, suitable for corrosive working conditions.

(7) Large single machine processing capacity, low energy consumption and low operation cost.

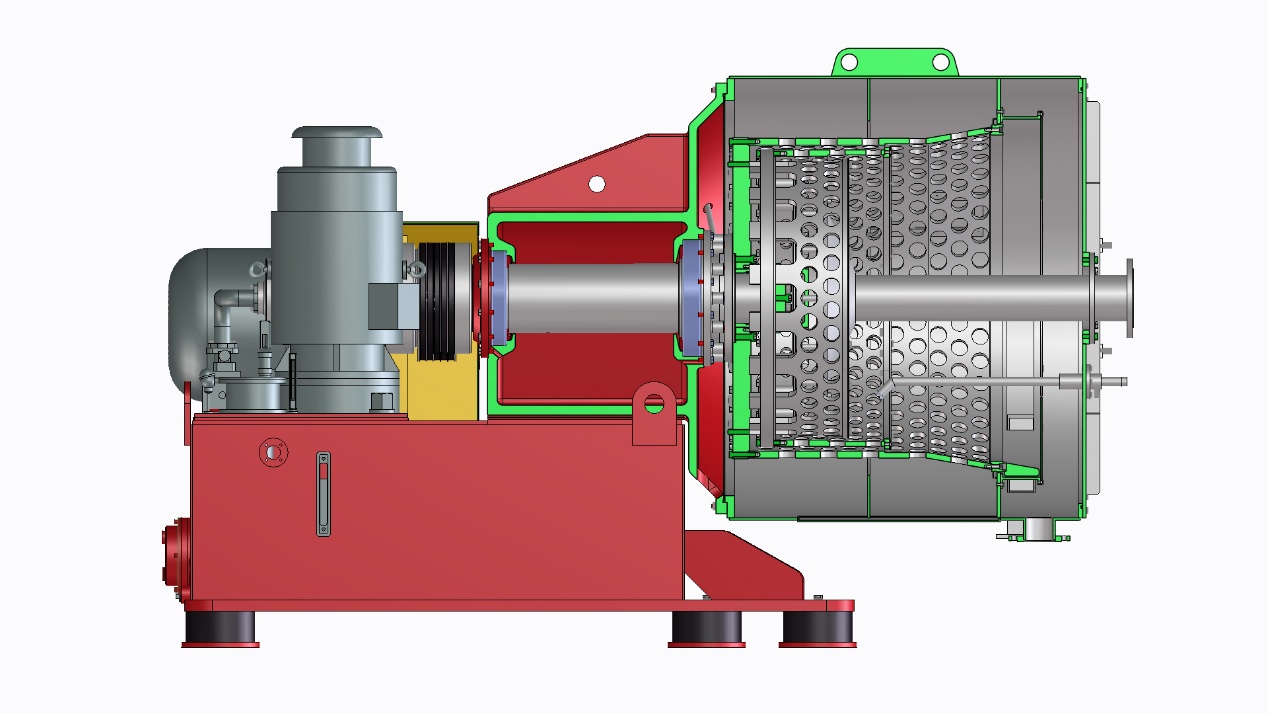

Pusher Centrifuge

The equipment is mainly composed of a composite piston pusher mechanism, a pusher plate, first-to-third-stage drums, a screen mesh, a hydraulic system, a lubrication system, a vibration-damping base, a motor drive device, a material silo, a cleaning system and an intelligent monitoring unit. All components operate synergistically to ensure the stable operation of the equipment.

Among them, the key components in direct contact with materials, such as drums, screen mesh and pusher plate, can be flexibly selected according to the specific composition of materials. The optional materials include 304 stainless steel, 316L stainless steel, 2205 duplex stainless steel, titanium alloy, Hastelloy and other materials. These materials have the characteristics of high strength and excellent corrosion resistance, which can effectively extend the service life of components and adapt to material processing needs under different working conditions.

Technical Features：

(1) Single-stage bidirectional pushing for larger processing capacity; two-stage/three-stage pushing for more thorough dehydration and lower moisture content.

(2) Low crystal breakage rate, maintaining the product crystal form.

(3) Hydraulic-driven pushing, ensuring stable operation and small impact force.

(4) Screen mesh can be replaced individually, facilitating maintenance.

(5) Online automatic cleaning, preventing screen clogging and scaling.

(6) Multiple safety protections: vibration, bearing temperature, oil pressure, oil temperature, and rotational speed.

(7)Suitable for high-concentration, large-particle, and high-corrosivity slurries.

(8) Capable of 24-hour continuous operation, with an annual operation time of more than 8000 hours.
